Key Advantages
Advanced Safety and Intelligent Management:
Utilizing high-energy-density NCM 523 cells, and incorporating a bipolar design, a flame-retardant casing, and an intelligent BMS, the system establishes a multi-layered safety framework that protects from the inside out. It supports Bluetooth and CAN communication for real-time battery status monitoring and provides comprehensive protection against overcharge, over-discharge, overcurrent, overheating, and short circuits, effectively mitigating the risk of thermal runaway.

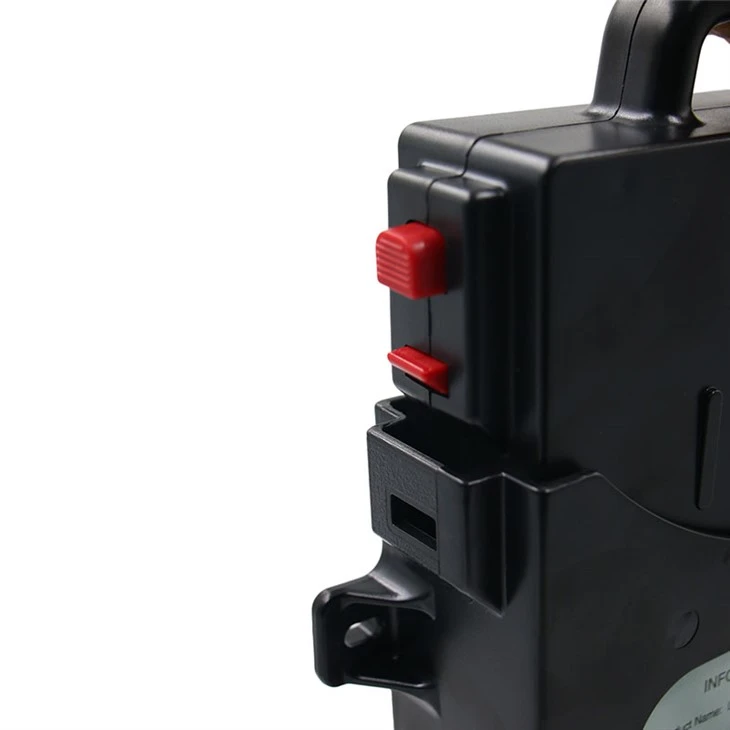

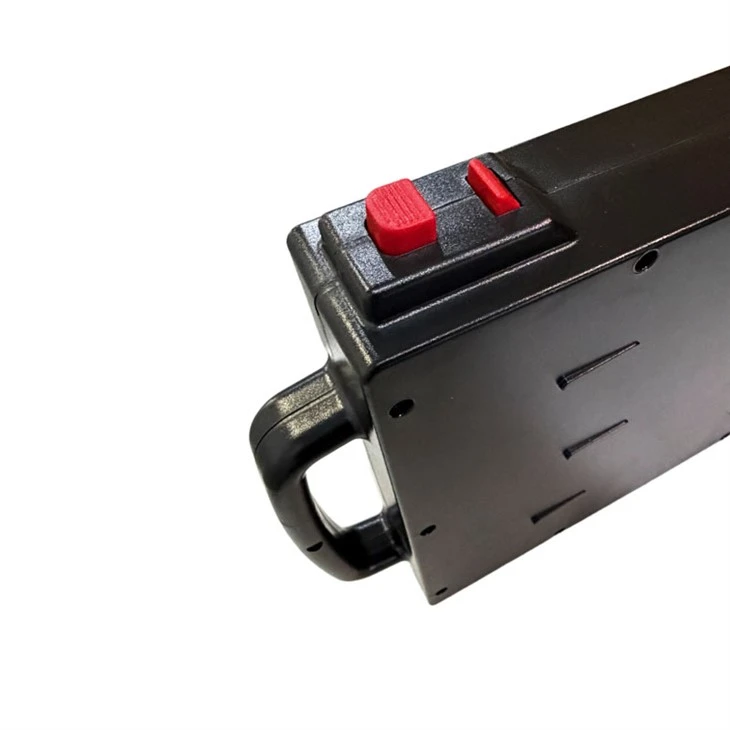

User-Friendly Quick-Release Design:
Designed specifically for electric wheelchair users, the side-mounted quick-release battery allows effortless one-handed installation and removal. The ergonomic case is easy to grip, making daily battery replacement simple, convenient, and user-friendly.
Wide Operating Temperature Range:
With a highly integrated battery system, our battery packs operate reliably in temperatures ranging from -20°C to 55°C, delivering stable performance in both extreme cold and hot environments to meet the mobility needs of users around the world.
Specifications
|
Product Specifications |
HQ-24V12Ah(Optional：24V 20Ah) |
Battery Type |
NCM/LMO Battery |
|
Charging Voltage |
29.4V |
Charging Current |
2A |
|
Discharge Current |
12A |
Cut-off Voltage |
21V |
|
Product Dimensions |
312 * 238 * 54 mm |
Cycle Life |
≥ 650 times
|
|
Operating Temperature |
-20 - 55℃ |
Storage Temperature |
0 - 15℃ |
|
BMS |
Optional：CAN / RS485 / Bluetooth |
Battery Display |
/ |
|
Warranty |
2 years |
Service Life |
2 years |
Application Scenarios
1. Daily mobility & urban travel: Designed for daily commuting, shopping, and community mobility, the battery pack provides reliable power for electric wheelchairs in environments such as residential areas, shopping malls, parks, and sidewalks, helping users enjoy greater independence and freedom of movement.
2. Outdoor recreation & long-distance mobility: With extended runtime and stable performance, it supports outdoor activities such as park visits, sightseeing, and family trips, providing continuous power for longer journeys and diverse outdoor conditions.
3. Healthcare & assisted living applications: Ideal for electric wheelchairs used in nursing homes, rehabilitation centers, hospitals, and home care environments, delivering safe, dependable energy solutions that support daily mobility needs.
FAQ
1. Q: Is it safe to use electric wheelchair batteries on bumpy roads?
A: Yes, it's very safe. Our battery packs are engineered for demanding real-world conditions. They feature reinforced spot-welded connections, a shock-absorbing internal structure, and a high-strength flame-retardant case. Every battery undergoes rigorous drop and vibration testing to ensure safe and reliable performance on uneven terrain.
2. Q: Can this battery be checked in or taken on an airplane?
A: Due to their large capacity (typically over 100Wh), electric wheelchair batteries generally do not meet the standard requirements for carry-on baggage. We recommend contacting your airline before traveling to confirm its specific policies regarding the transport of medical mobility device batteries, including check-in and cargo transportation options.
3. Q: Can you print our own logo on the batteries or packaging?
A: Yes. We offer professional private labeling (OEM) services and can print your custom logo on both the battery and its packaging according to your requirements, helping you build your own brand.
